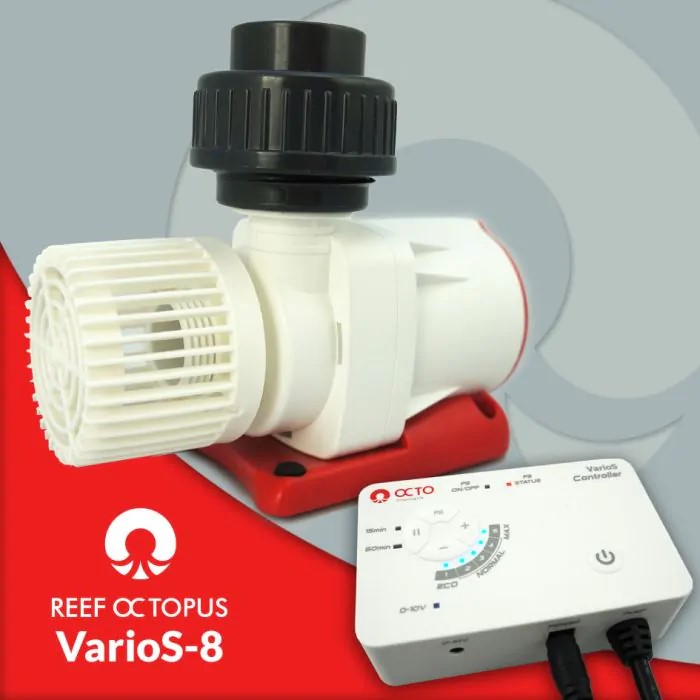

The Reef Octopus VarioS Circulation pump features a detachable controller with mount, a high-quality ceramic shaft with propeller bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy efficiency, and safer operations.
Unlike the vast majority of circulation pumps which use alternating current (AC), the VarioS pump boasts several key advantages over traditional AC pumps like greater energy efficiency and safer low voltage operation, and producing less heat per volume of flow.
>>> Now the aquarist can have full control of the water flow through their sump, reactors, filters, or closed-loop systems!!!
Refined Control
In addition to allowing the pump to run at 5 different speeds, which is pretty standard for a DC pump, the new VarioS Controller takes the pump to a new level featuring:
A float switch connection allows you to connect a float switch (included in the box) to the controller. This added security feature will enable you to shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
Two different pause/feed modes will shut off the pump for either 15 or 60-minute intervals. These come in handy when you feed the tank or conduct regular maintenance such as a water change.
And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller's native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

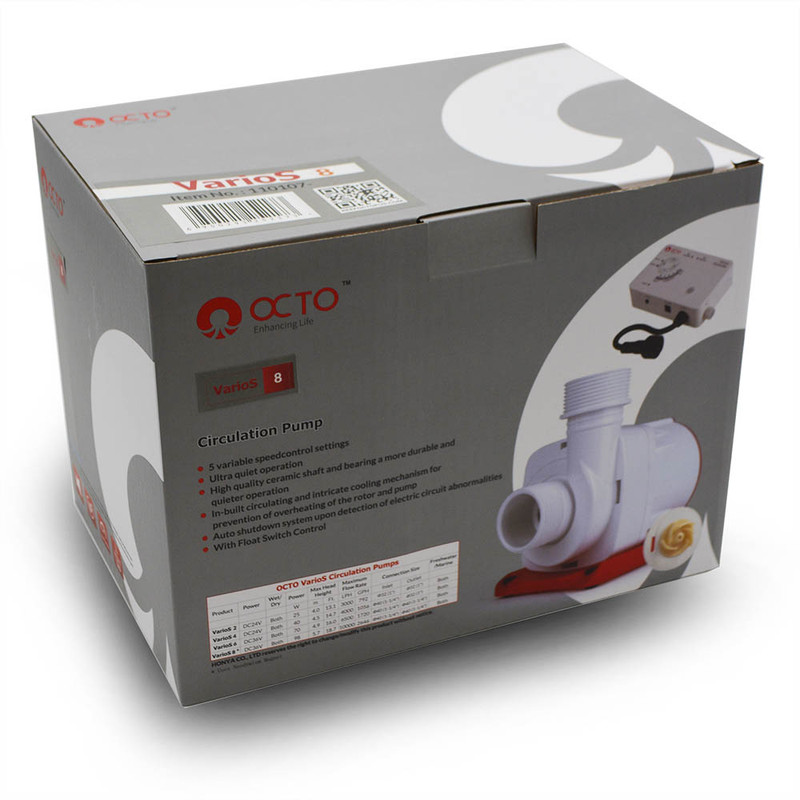

Includes: VarioS pump, controller, float switch, power supply, output and input union for plumbing direct PVC, versatile stepped barb output fitting for flex tubing, and protective intake screen.
The VarioS pump has a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.
The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90-degree intervals, meaning users can output water vertically (up or down) and horizontally.
Specs:
Input: 1.25" Male Union Thread
Output: 32mm/1.25" (barb/pvc coupling)
Max Flow: 2700 GPH
Max Head: 18 FT
Max Wattage: 98W
Voltage: 36V DC
Dimensions: 5.7" L x 3.75" W x 5.5" H
Cable Length: 6 FT
Pump Warranty: 2 Years
Rotor Warranty: 1 year
IMPORTANT: The VarioS 8 pump is NOT pressure-rated and CANNOT be used in floor-to-floor applications where the pump pushes water from one floor to another.
Power Level
Max Head Height
Max Flow Rate
Power
Meter
Feet
LPH
GPH
W
1
2.2
7.2
5500
1450
20
2
3.5
11.5
7500
1980
45
3
4.5
14.8
6200
1640
60
4
5
16.4
9500
2510
80
5
5.7
18.7
10000
2640
98
Note: The chart does not reflect head pressure caused by restrictive plumbing.
